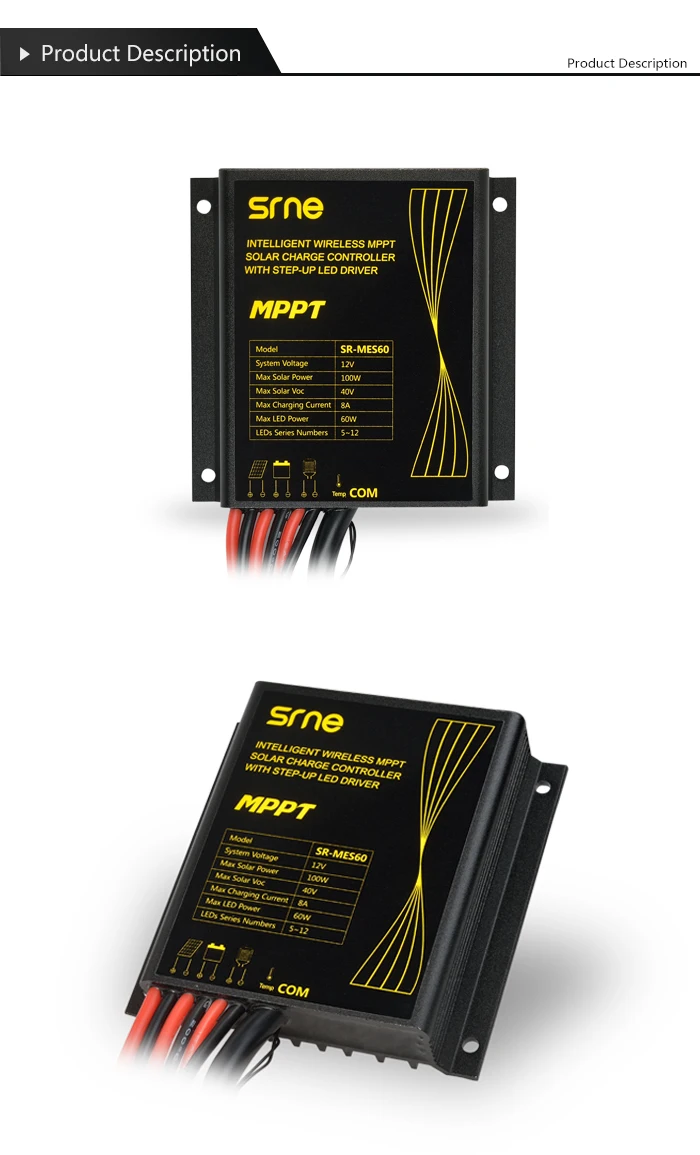

LED Street Lights waterproof solar charge controller mppt 10a with sensor
1. Exclusive controller for Lithium Battery, which suit for ternary Lithium, Lithium iron battery, Lithium cobalt oxides battery, etc.
2. Supporting 12V lithium battery, can activate lithium battery automatically.
3. Adopts MPPT charging method, which supports the Voc of solar panel≤40V; Pmax of solar panel ≤100W
4. Lithium battery low temperature charging protection, when the ambient temperature is lower than 0℃, the controller will auto stop low temperature charging so as to protect the battery.
5. With step-up constant current source for output, which can drive 12 LEDs in series, the Maximum power of load can reach up to 60W.
6. Three induction stages design. Working time can be set range from 0h to 15hours, power range from 0~100%.

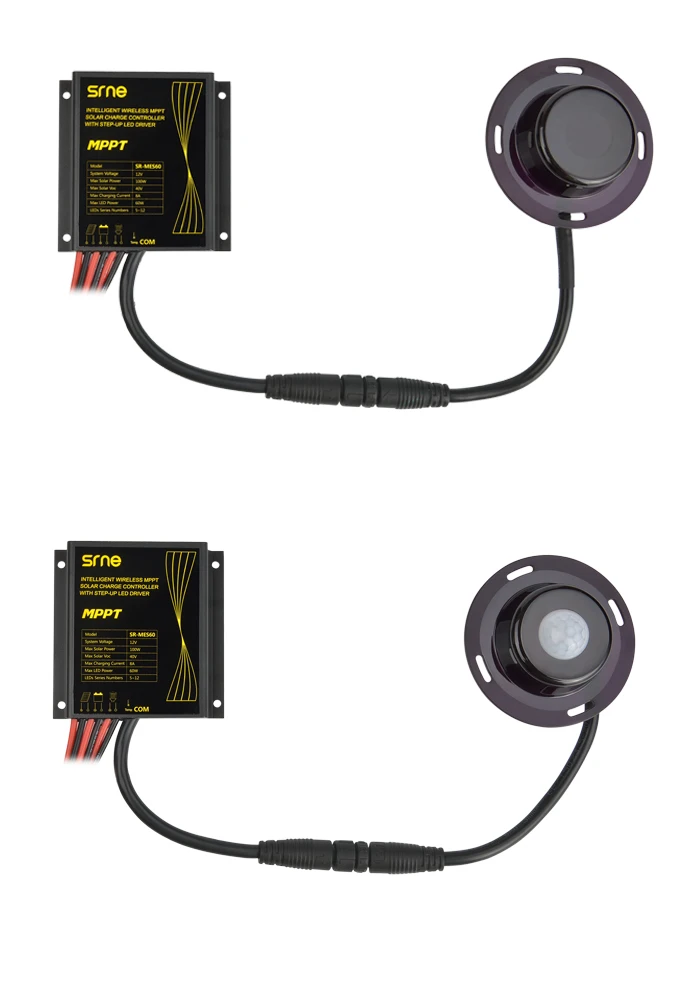

7. Human infrared induction or microwave induction function.
8. Sensitive time delay can be set range from 0s~250s.
9. Lithium battery low-temperature charging protection. when the ambient temperature below 0℃, controller will stop low temperature charging for protecting the battery.
10. Record system status, can record at a max 7days and monitor the whole system.
11. The true constant current but not limited the current, insure the current output stability thus decrease LED light failure, increase the LED service life.
12. Metal case, IP68 waterproof degree, can be used in all kinds of bad conditions.
13. Overheat protection function, when the controller reaches a certain temperature, it will decrease or close the load.
14. Varies system protection. Including the battery reverse connection, LED short circuit, open circuit protection and so on.
